Baffle Ball

Baffle Balls are a liquid surge preventative measure designed for the safe transportation of liquid in tankers and horizontal transport tanks.

Baffle balls reduce fluid movement during cornering or braking and improve the stability of the load during transit especially on rough terrain.

Along with the many safety factors associated with baffle balls, another benefit is to help lower vehicle maintenance.

Brakes and tyre wear, suspension damage, chassis and tank fatigue are just a few areas of vehicle maintenance that will benefit from baffle balls being added to your liquid transportation tanks

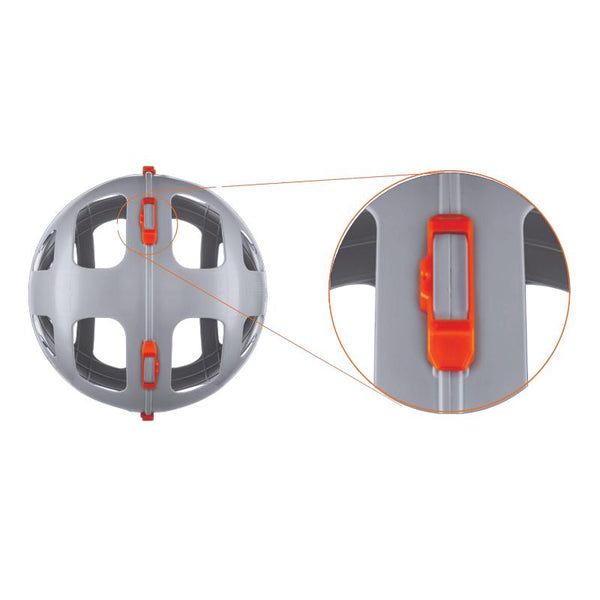

The CLIP-LOCK Baffle Ball incorporates our new innovative CLIP-LOCK Technology. Six independent clips that are secured into place to prevent the two halves from coming apart when in use.

Why use Baffle Balls?

• Increased vehicle stability
• Prevent the two halves from coming apart when in use
• Reduction in the likelihood of rollover from liquid displacemnet.
• Increase safety through less driver fatigue
• Reduction in vehicle maintenance cost (tyres, brakes, etc.)
• Improved driving stability on rough terrain and emergency stops.
• Manufactured from food-grade polypropylene.

Compatible with most harsh chemicals and fuels (petrol, diesel, paraffin, etc.).

Technical Data:

Max diameter (including clips): 380mm
Material: Food Grade Polypropylene
Weight (including clips): 0.437 kg
When installed the baffle balls will take up less than 1% of the total volume of a tank.

How many Baffle Balls do I need?

1 Baffle Ball takes up roughly 40lt's in a tank.
   E.g.2500lt / 40lt = 62.5 Baffle Balls
   Therefore a 2500lt tank would need 63 Baffle Balls.

Below is an indication of how many baffle balls you will need more or less:

• 600L ± 12 balls
• 1000L ± 23 balls
• 1500L ± 30 balls
• 2500L ± 63 balls
