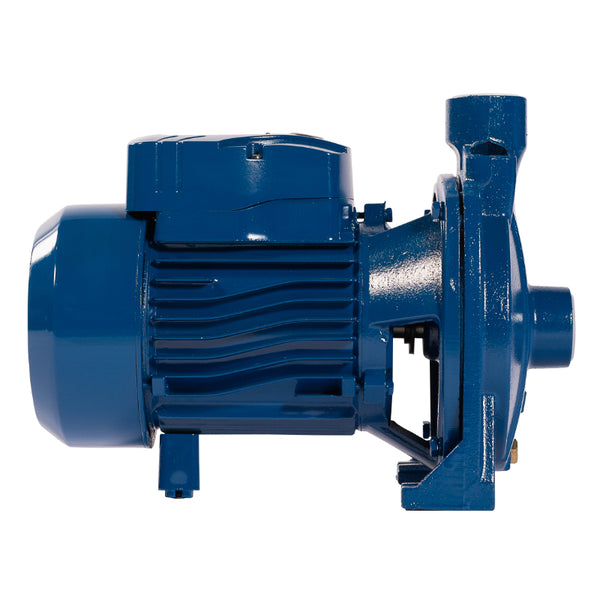

Flowpump Monoblock 0.75kw pump only

Applications and Uses:

•  Single-Stage Centrifugal Pump is an ideal pressure boosting centrifugal pump for the transfer of clean liquids

• It's an ideal high-efficiency and energy-saving household electric pump.
• Widely used in farmland irrigation, sprinkler irrigation, garden sprinkler irrigation, vegetable greenhouse water supply and aquaculture water supply and drainage.
• The occasions where domestic water is used for water extraction from wells, tap water pressurization, ect.

Flowpump Monoblock Pump only 0.75 kw:

•  Flow rate up to 100 L/min (6 m³/h).
• Head up to 32 m.
• Speed of rotation: 2850rpm.
• Before the first use, the water storage tank should be filled with water.
• Single phase power supply with capacitor permanently activated.
• This electrical pump is small in size, light in weight, compact in structure and easy to install.
• Overload protection.
• Low noise operation.
• Suction lifts up to 6m with foot valve (depending on altitude)
• Maximum operating pressure: 8 bar
• Maximum ambient temperature: +40°C
• Maximum liquid temperature: +40°C

Design Features:

• Pump body/ motor support: Cast Iron
• Electric Motor: Single-phase 220V/50Hz with condenser and thermal overload protector built into the copper winding
• Impeller: Brass or stainless steel.
• Pump shaft: Stainless Steel 304
• Mechanical seal: Graphite/Ceramic
• Brass insert front and back of inlet casing for ID 40
