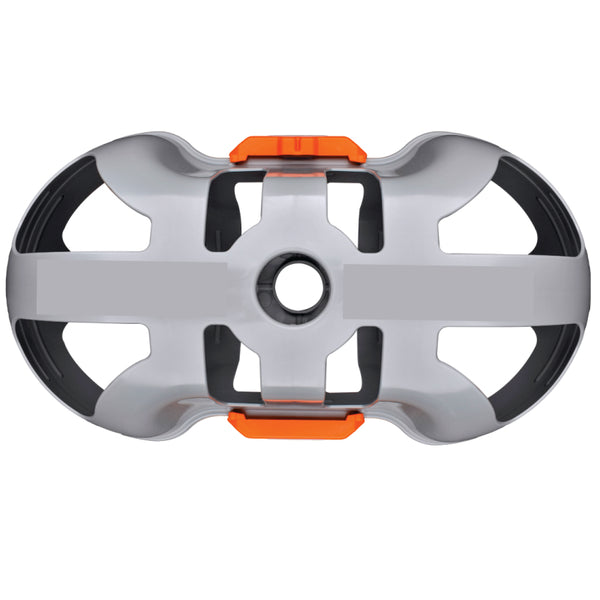

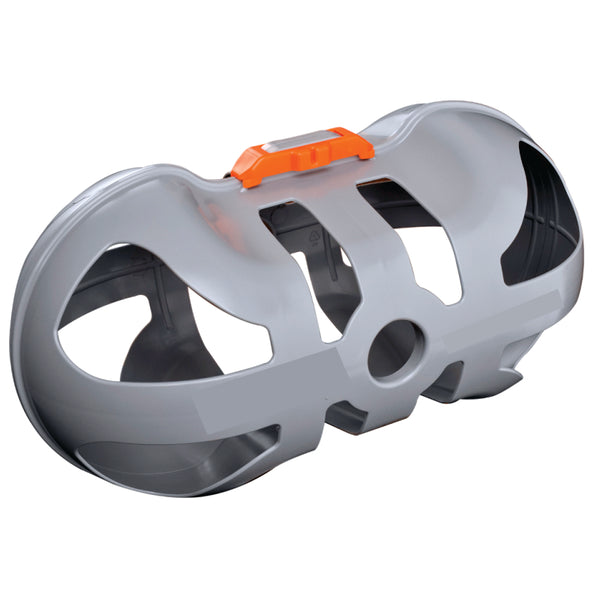

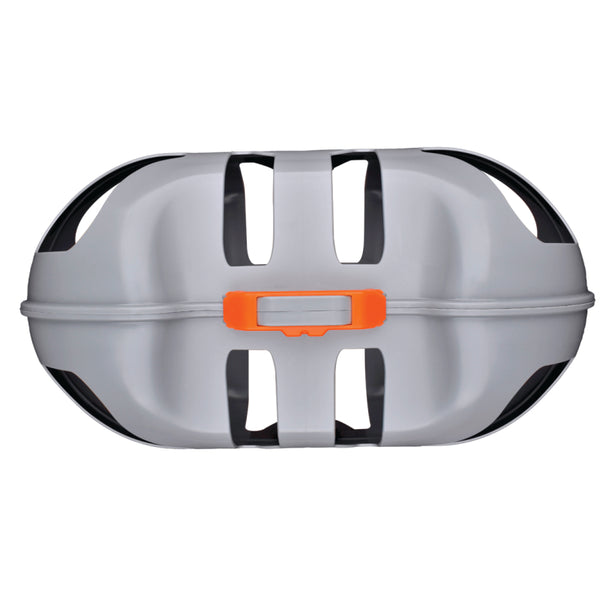

Baffle Ball - 170mm Clip Lock

Description

Baffle Balls are a liquid surge preventative measure designed for the safe transportation of liquid in tankers and horizontal transport tanks.

Baffle balls reduce fluid movement during cornering or braking and improve the stability of the load during transit especially on rough terrain.

Along with the many safety factors associated with baffle balls, another benefit is to help lower vehicle maintenance.

Brakes and tyre wear, suspension damage, chassis and tank fatigue are just a few areas of vehicle maintenance that will benefit from baffle balls being added to your liquid transportation tanks

Our new 170mm CLIP-LOCK Baffle Ball is specifically engineered for smaller and slimline tanks, making it the ideal solution for tanks 1500 litres or less or those with narrow, space-conscious designs.

The elongated shape of the 170mm Baffle Ball allows for more efficient spatial coverage, meaning fewer individual balls are required to achieve the same liquid stabilisation effect. This not only improves installation efficiency but also reduces overall product cost while maintaining the highest safety and performance standards.

The 170mm CLIP-LOCK Baffle Ball incorporates our new innovative CLIP-LOCK Technology. Six independent clips that are secured into place to prevent the two halves from coming apart while in use, a common problem with competing baffle balls.

Technical Specifications:

Max Diameter:  167mm (including clips)
Length: 307mm
Material: Polypropylene (FDA Approved)
Weight:  170g (including clips)

Each Baffle Ball takes up roughly 8,5lt’s in a tank.
When installed the baffle balls will take up less than 1% of the total volume of a tank.
