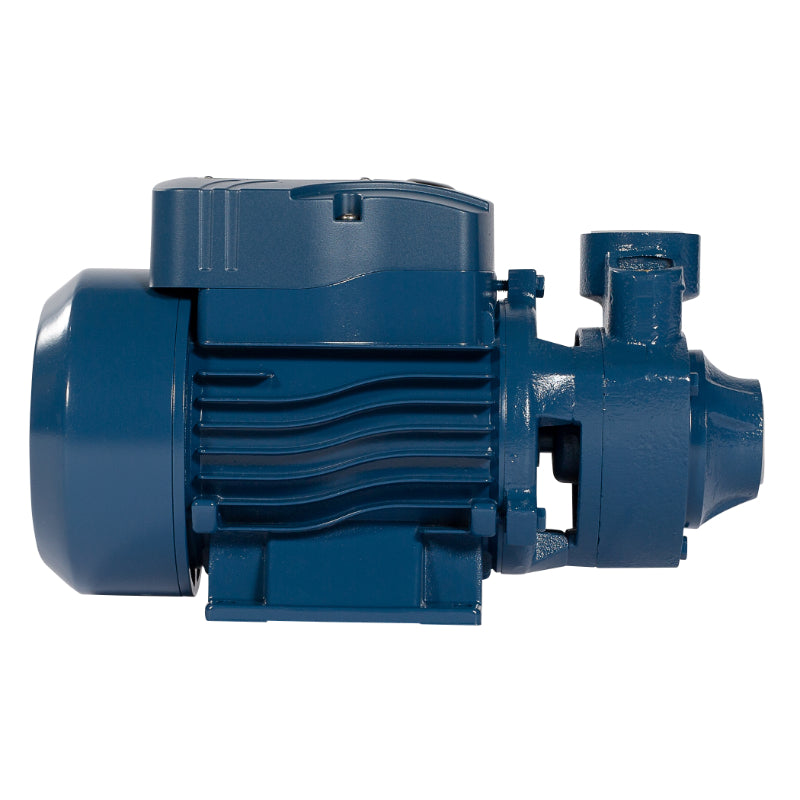

Flowpump Peripheral water pump only 0.37kw

Applications and Uses:

•  An effective, reliable, and energy-efficient pump.
• Ideal for use in residential and civil settings.
• Run pump once a week due to impeller design.
• Suitable for garden irrigation & domestic use.
• Can be used for pressure boosting and washing systems.
• Recommended for pumping clean water without abrasive particles, and liquids that are chemically non aggressive for the materials of which the pump is made.

Flowpump Peripheral Pump only 0.37 kw:

•  Flow rate up to 34 L/min (2 m³/h).
• Head up to 36 m.
• Speed of rotation: 2850rpm.
• Single phase power supply with capacitor permanently activated.
• Fitted thermal overload.
• Suction lifts up to 6m with foot valve (depending on altitude)
• Maximum operating pressure: 8 bar
• Maximum ambient temperature: +40°C
• Maximum liquid temperature: +40°C

Design Features:

• Pump body/ motor support: Cast Iron
• Electric Motor: Single-phase 220V/50Hz with condenser and thermal overload protector built into the copper winding
• Impeller: Brass, with radial peripheral vanes
• Pump shaft: Stainless Steel 304
• Mechanical seal: NBR/Graphite/Ceramic
• Brass insert front and back of inlet casing for ID 40
