Applications and Uses:

Single-Stage Centrifugal Pump is an ideal pressure boosting centrifugal pump for the transfer of clean liquids
It's an ideal high-efficiency and energy-saving household electric pump.
Widely used in farmland irrigation, sprinkler irrigation, garden sprinkler irrigation, vegetable greenhouse water supply and aquaculture water supply and drainage.
The occasions where domestic water is used for water extraction from wells, tap water pressurization, ect.

Flowpump Monoblock Pump Kit 0.75 kw:

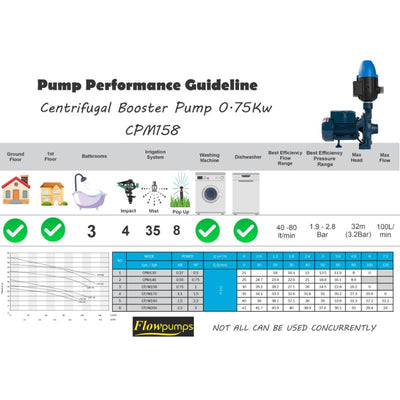

Flow rate up to 100 L/min (6 m³/h).
Head up to 32 m.
Speed of rotation: 2850rpm.
Before the first use, the water storage tank should be filled with water.
Single phase power supply with capacitor permanently activated.
This electrical pump is small in size, light in weight, compact in structure and easy to install.
Overload protection.
Low noise operation.
Suction lifts up to 6m with foot valve (depending on altitude)
Maximum operating pressure: 8 bar
Maximum ambient temperature: +40°C
Maximum liquid temperature: +40°C

Design Features:

Pump body/ motor support: Cast Iron
Electric Motor: Single-phase 220V/50Hz with condenser and thermal overload protector built into the copper winding
Impeller: Brass or stainless steel.
Pump shaft: Stainless Steel 304
Mechanical seal: Graphite/Ceramic
Brass insert front and back of inlet casing for ID 40

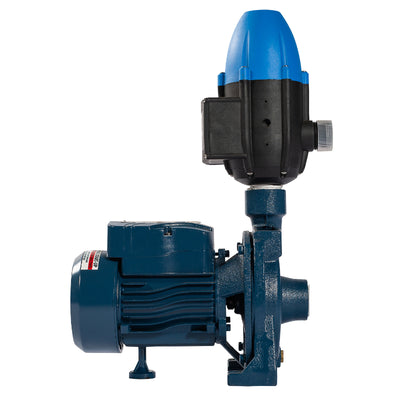

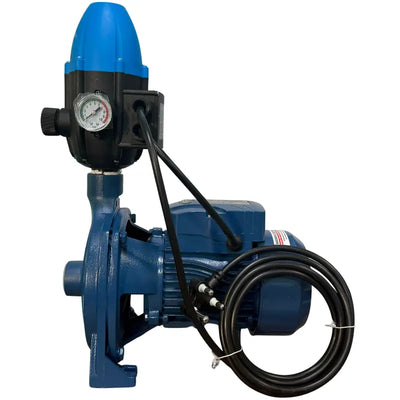

Flowpump Monoblock 0.75kw pump Kit
