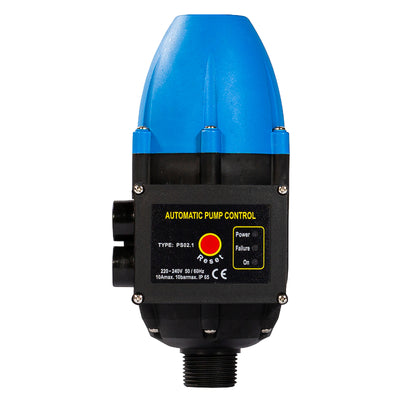

Automatic Electric Pressure control switch is a quality & reliable product. It's carefully designed to regulate the water pressure in the domestic water supply system.

Features:

Switches the pump on automatically whenever there is a pressure drop in the pipeline - maintains a preset level of pressure.
Also Switches the pump off automatically once the pipeline is closed completely. Thereby makes the entire pumping system effective and efficient.
The inbuilt check valve & logic circuit system protects the pump from backflow of water & dry running which enhance the life span of the pump.
Sets free from operating the pump manually
Ensures uninterrupted water supply with adequate pressure Saves electricity & time
Protects pump from dry running & backflow of water
Designed for easy installation

Automatic Electric Pressure control switch Technical data:

Rated voltage: 220-240V
Frequency: 50/60Hz
Staring pressure: 1.5bar
Max. pressure: 10bar
Max. water temperature: 60°C
Max. current: 10A
Pipe diameter: 1"x 1" (25mm)
Protection degree: IP65

Can be used on all booster water pumps.

Flowpump CPV-Electronic Pressure Switch - Adjustable
