Applications and Uses:

Recommended for pumping clean water without abrasive particles and liquids that are chemically non aggressive for the materials used in the construction.
Easy to operate.
Low noise level.
Automatic start/stop function.
Energy efficient – up to 80% more energy savings compared to traditional pump systems.
Restart delay – an integral time delay for restart after 3 seconds protects the motor from heat build-up due to continuous on/off switching.
Auto-rotation – a built in timer will automatically start the pump within a pre-selected cycle to rotate the bearings.
Constant pressure – a pressure transducer ensures that constant pressure is maintained even when multiple water outlets are used simultaneously.
Class leading efficiency:
- The unit has the following integrated functions for protection from:
  - Dry run
  - Over-current
  - Over/under voltage
  - Overload’
  - Abnormal pressure
The pump must be installed under a vented cover and protected against exposure to rain or water spray.

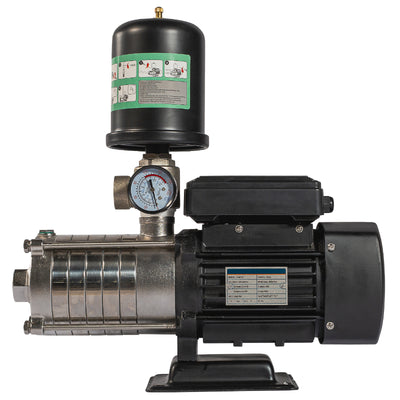

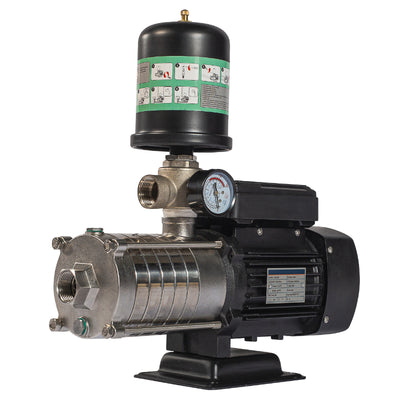

Flowpump 1.5 kw Intelli VSD Booster pump:

Flow rate up to 133.3 L/min (8 m³/h).
Head up to 55 m.
One of a kind self-priming pump.
Constructed with light weight robust material, it is ideal for transport and installation.
It can empty wells and supply enough pressure to run an irrigation system.
Maximum ambient temperature: 40°C
Maximum fluid temperature: 40°C

Design Features:

Pump body: Aluminum
Electric Motor: Single-phase 230V/50Hz with capacitor and thermal overload protection.
Impeller: Noryl
Pump shaft: Stainless Steel 304
Mechanical seal: Graphite/Ceramic
