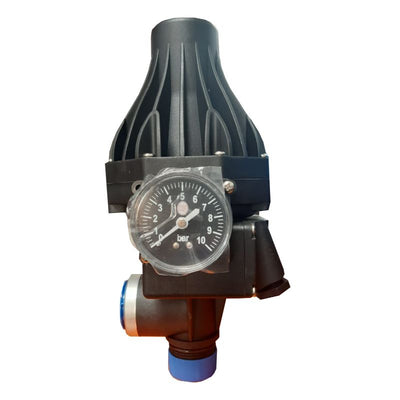

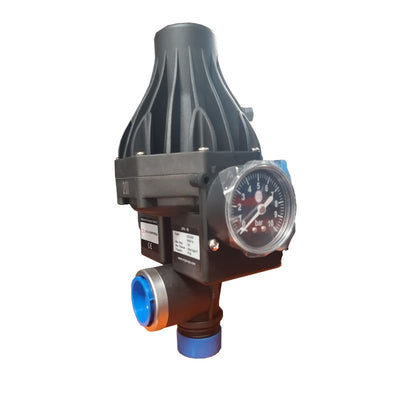

Electronic Pressure Controller is a quality & reliable product which is carefully designed to regulate the water pressure in the domestic water supply system.

Features:

It switches ON the pump automatically whenever there is a pressure drop in the pipeline and maintains a preset level of pressure in the pipeline.
It also switches OFF the pump automatically once the pipeline is closed completely and thereby makes the entire pumping system effective and efficient.
The inbuilt check valve & logic circuit system protects the pump from backflow of water & dry running which enhance the life span of the pump.
Sets free from operating the pump manually
Ensures uninterrupted water supply with adequate pressure Saves electricity & time
Protects pump from dry running & backflow of water
Designed for easy installation

Technical data:

Rated voltage:220-240V
Frequency:50/60Hz
Staring pressure: 1.5bar
Max. pressure: 10bar
Max. current: 10A
Pipe diameter: 1"x 1" (25mm)
Protection degree: IP65

Can be used on all booster water pumps.

CPV3A Automatic Pressure Control Switch for all Booster Water Pumps
